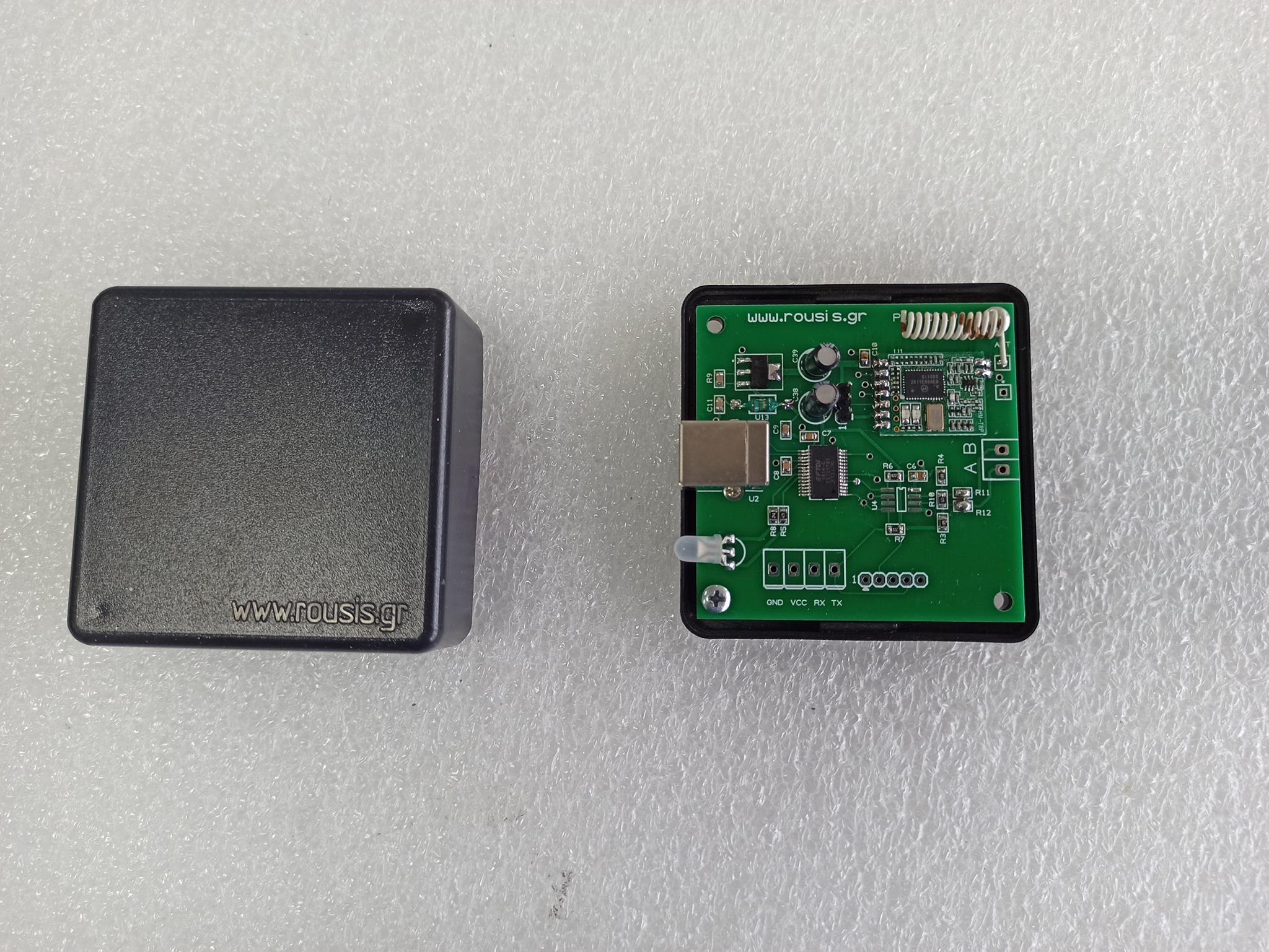

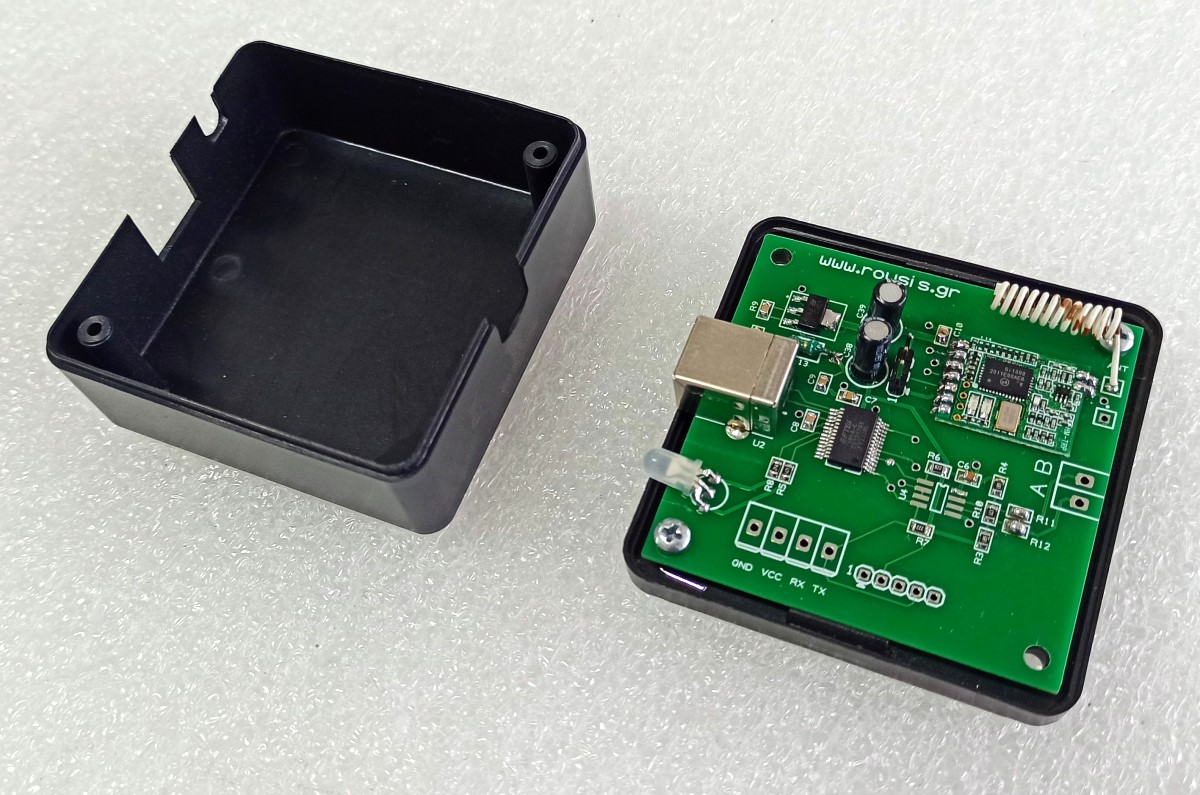

USB/rf tranceiver wireless 869MHz

Converter USB to RF wireless data link for general use such as controlling devices from a computer or IoT applications. High performance transparent FSK RF data link module data transceiver with operating at 869 MHz. It features high output power, high sensitivity, long transmission distance and high communication data rate with auto set up for communication change and data receiving and transmission control. There is UART interface, it is easy to realize the wireless data transmission with only providing the UART data. It is flexible for the users to set the UART baud rate, frequency, output power, data rate, frequency deviation, receiving bandwidth etc parameters. It is your ideal choice for designing wireless data transmission products which can be widely used on wireless data transmission field.


  • Low cost, high performance , high reliability
  • FSK modulation, 2-way half –duplex communication, strong anti-interfere
  • 434/470/869/915MHz ISM band,globally license free.
  • Maximal output power100mW(20dBm),output power adjustable between 1-20dBm
  • Sensitivity -117dBm
  • Supply current for Tx 100mA@20dBm, 40mA@14dBm, Supply current for Rx 25mA
  • Low current sleep mode 1uA
  • Standard TTL UART interface, extendable to RS232 or other interface
  • Operation frequency can be configured, acceptable for several modules working in different frequency with no disturbance on each other.
  • Optional for frequency deviation and receiving ISM bandwidth, users can be modulated by software.
  • Easily use, auto exchange on communication & transceiver
  • Communication speed 1.2kbps -115.2kbps,can be modulated through software
  • RSSI function
  • With LED indication
  • Longer transmission distance,over 1Km in open air
  • Tuning free
  • Accord FCC,ETSI standard

This device uses VCP & D2XX Drivers

Virtual COM port (VCP) drivers cause the USB device to appear as an additional COM port available to the PC. Application software can access the USB device in the same way as it would access a standard COM port.

 Operating systems that USB drivers supports:

  • Windows 10 32,64-bit
  • Windows 8/8.1 32,64-bit
  • Windows 7 32,64-bit
  • Windows Vista and Vista 64-bit
  • Windows XP and XP 64-bit
  • Windows 98, 98SE, ME, 2000, Server 2003, XP,
  • Server 2008 and server 2012 R2
  • Windows XP Embedded
  • Windows CE 4.2, 5.0 and 6.0
  • Linux 2.4 and greater
  • Android(J2xx)
